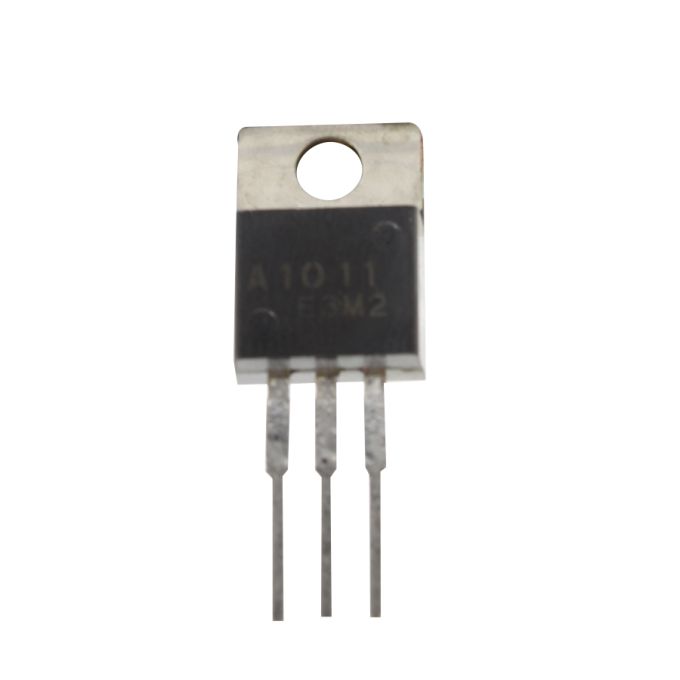

2SA1011 - Transistor PNP - TO220 - NTE 398

SKU: 076655

Model: 2SA1011

2SA1011 - Transistor PNP - TO220 - NTE 398

$1.50 1.5
  • Type Designator: 2SA1011
  • Material of Transistor: Si
  • Polarity: PNP
  • Maximum Collector Power Dissipation (Pc): 25 W
  • Maximum Collector-Base Voltage |Vcb|: 180 V
  • Maximum Collector-Emitter Voltage |Vce|: 180 V
  • Maximum Emitter-Base Voltage |Veb|: 6 V
  • Maximum Collector Current |Ic max|: 1.5 A
  • Max. Operating Junction Temperature (Tj): 175 °C
  • Transition Frequency (ft): 100 MHz
  • Collector Capacitance (Cc): 30 pF
  • Forward Current Transfer Ratio (hFE), MIN: 60
  • Noise Figure, dB: –
  • Package: TO220

Product details

  • Model:
  • 2SA1011
  • UPC Code:
  • ADD076655
  • Inner:
  • 1
  • Master:
  • 1
  • Product height:
  • 1 cm
  • Product width:
  • 1 cm
  • Product length:
  • 1 cm
  • Product weight:
  • 0.01 kg
