DIN Rail Clamping Screw Terminal Block - 22-10AWG - 600V - 30A

Name: DIN Rail Clamping Screw Terminal Block - 22-10AWG - 600V - 30A
Brand: NHD
SKU: 912880
Price: 3.99 CAD
Availability: InStock

SKU: 912880

Model: HT-4E

NHD

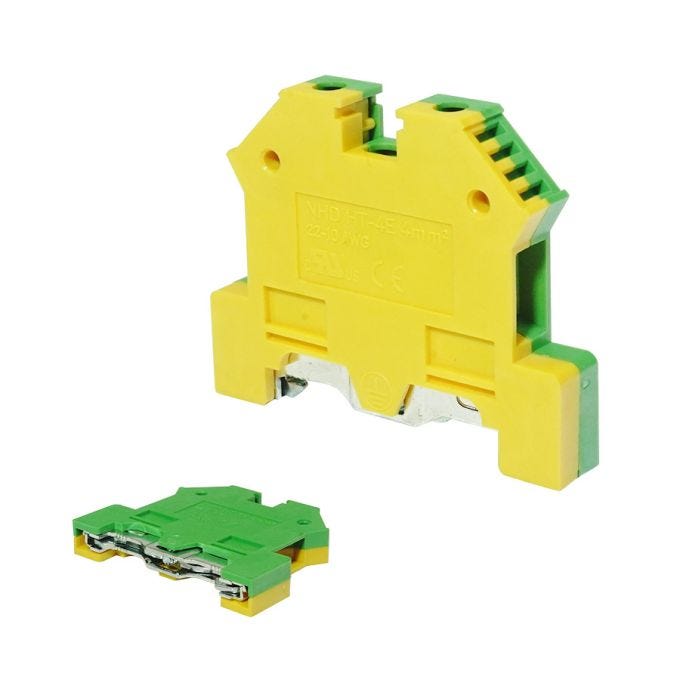

DIN Rail Clamping Screw Terminal Block - 22-10AWG - 600V - 30A

$3.99 3.99

This screw clamp terminal block for DIN rail is used to connect and facilitate the connection of electrical cables on a DIN rail. It allows the connection of electrical conductors of different gauges (22-10 AWG) while ensuring adequate electrical insulation for voltages of up to 600V and currents of up to 30A.

Features:

Connection type: 9 mm clamping screw and Clip-On terminal
Dimensions (W x H): 46.5 mm X 45.5 mm
Material: PA66
Rail mounting: TS32 / TS35
Insulation stripping length: 11.5 mm
Wire gauge range: 22 – 10 AWG
Current voltage: 600 V / 30 A
Color: Green and yellow
CE certified

$3.99 3.99

Quantity

Select your store

Store availability:

Select your store

Store availability:

Exchange and refund

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

Maker:
NHD

Model:
HT-4E

UPC Code:
691586190218

Inner:
1

Master:
50

Product height:
45 cm

Product width:
46 cm

Product length:
1 cm

Product weight:
0.01 kg
