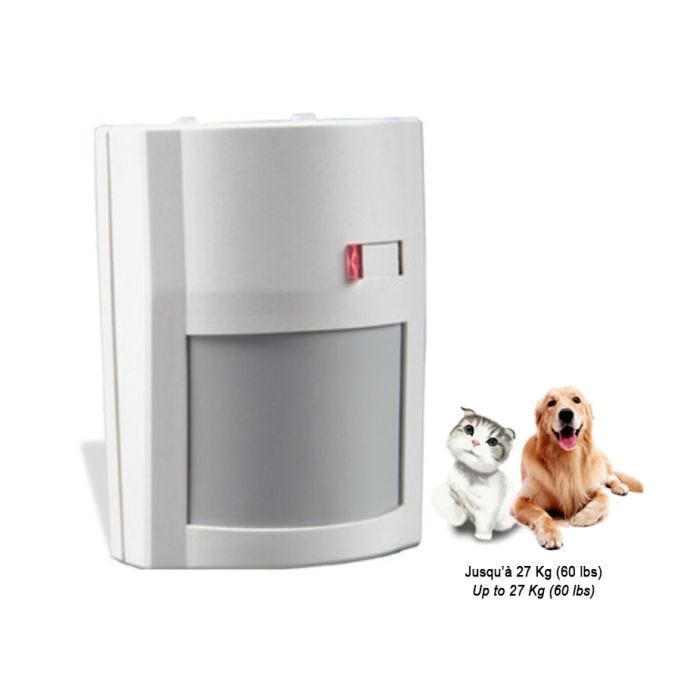

The DSC BV-300P motion detector is a reliable, high-performance security device designed for residential and commercial security systems. Thanks to its passive infrared (PIR) motion detection technology, it is able to detect suspicious movements in a specific area with a range of up to 39 ft (12 m). Featuring pet immunization up to 60 pounds, the Bravo 300P motion detector helps prevent false alarms caused by pet movements.

Its adjustable sensitivity settings, anti-masking technology and temperature compensator ensure optimal performance in various environments. Easy to install and compatible with wired security systems, the DSC BV-300P motion detector provides effective monitoring and reliable protection against intruders.

Features:

• Detection technology: Passive infrared (PIR) motion detector
• Pet Immunization: Able to distinguish human movements from pets weighing up to 60 lbs (approximately 27 kg), reducing false alarms
• Detection Angle: Offers a 75 degree detection angle, allowing for wide monitoring of the area
• Detection range: Capable of detecting movements up to 39 ft away (12 m)
• Dual Sensor: Uses dual sensor technology for improved reliability and to reduce false alarms
• Adjustable sensitivity: Ability to adjust the sensitivity of the detector to adapt to the needs and specific environment
• Anti-masking technology: Incorporates anti-masking technology to detect any attempt to block or camouflage the sensor
• Temperature compensator: Automatic adaptation to temperature variations to avoid false alarms
• Special lens: Equipped with a special lens which allows optimal detection even through obstacles such as windows or fences
• Digital Analytics: Using digital analytics for accurate motion detection and reduction of false alarms
• Easy Installation: Ease of installation and configuration, compatible with wired security systems
• Compliance with standards: Compliance with safety and quality standards to ensure reliable and long-lasting performance
• Four interchangeable lenses
• High level of white light immunity
• Vertical and corner wall mounting

Specifications:

• Operating voltage: 9.5V DC - 14.5V DC
• Standby current: 16mA
• Current in alarm: 20mA
• Contact rating 100mA to 24VDC
• Alarm contact resistor in common: 10Ohms 1/4W
• Sensitivity: 4°C to 0.6m/s
• Static immunity: 8kV contact, 15kV air
• Transient immunity: 2.4kV to 1.2 joules
• Coverage angle: 60° minimum / 75° maximum
