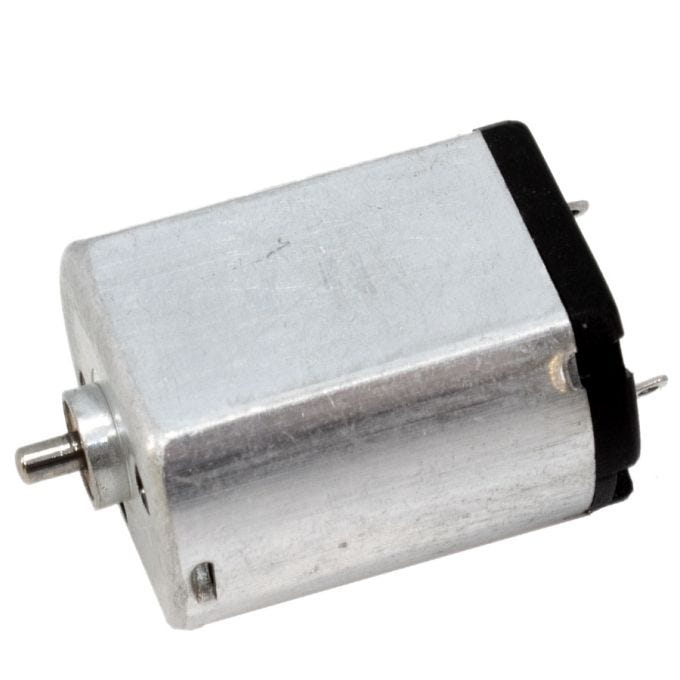

Free Load Motor - 6 V - 18600 RPM

SKU: 902113

Model: FF-030PA-12140

Free Load Motor - 6 V - 18600 RPM

Regular Price $3.99 3.99
-$1.00 Special Price $2.96 2.96

Standard Operation Conditions

  • 1-1 Rated voltage 6.0VDC
  • 1-2 Voltage Range 5.0~7.0VDC
  • 1-3 Direction of rotation CW with « + » voltage applied to « + » terminal (viewed from output end).
  • 1-4 Operating temperature range -10? to +60?
  • 1-5 Storage temperature range -20? to +70?
  • .Measuring condition
  • 2-1 Voltage to Motor 6.0VDC
  • 2-2 Environmental Temperature  20-25 ?( Room temperature 20-25?)
  • 2-3 Environmental Humidity 40%~80% RH
  • 2-4 Motor position To be placed horizontally when measuring.
  • 2-5 Power source Regulated DC constant power supply

Motor Performance  (at initial stage after 1 minutes run-in)

  • 3-1 No Load Speed 18600±10%rpm
  • 3-2 No Load Current 65mA (98mA Max)
  • 3-3 Rated Load 10.0g-cm<0.98mN.m>
  • 3-4 Rated Load Speed 13000±10%rpm
  • 3-5 Rated Load Current 408mA (610mA Max)
  • 3-6 Stall Torque 33.2g-cm (24.0g-cm Min)
  • 3-7 Stall Current 1200mA (1890mA Max)
  • 3-8 Starting Voltage(No-Load) 1.0V Max
  • 3-9 Insulation Resistance 1MO/100VDC Min
  • Between motor terminal and motor metal housing.
  • 3-10 Performance curve

Mechanical Characteristics

  • 4-1 Motor outline 5?See attached drawing Page5/5.
  • 4-2 Gear-box End Play 0.03~0.30mm
  • 4-3 Weight 12.8g(Approx)

Noise Level

  • 55dB 30cm,=30dB)
  • 55dB[A] Max/RMS, no load, rated voltage, with motor to be set and measured as below. Background noise: 30dB
  • [A] Max/RMS max.

Product details

  • Model:
  • FF-030PA-12140
  • UPC Code:
  • 691586141692
  • Inner:
  • 100
  • Master:
  • 1000
  • Product height:
  • 1 cm
  • Product width:
  • 2 cm
  • Product length:
  • 1 cm
  • Product weight:
  • 0.01 kg
