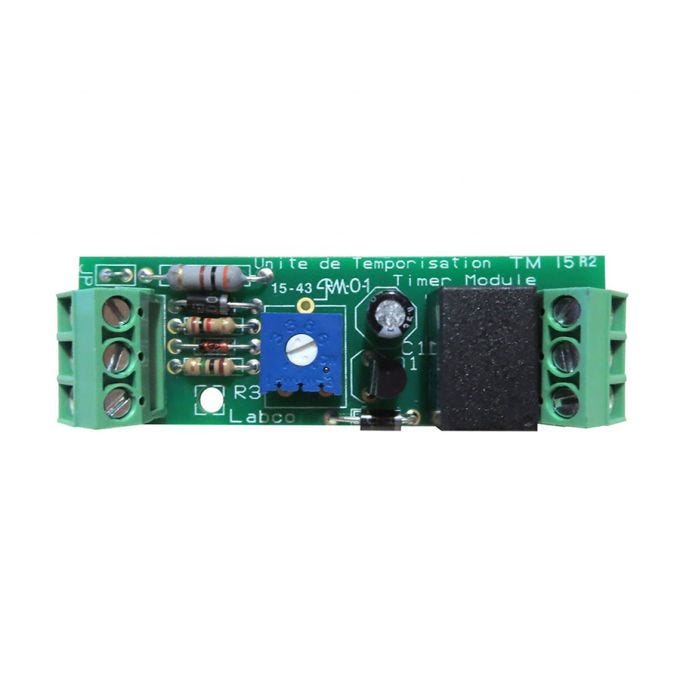

The LABCO TM-15 Adjustable Timer Module is an ideal choice for all your timing needs. With its adjustment range of 2 to 15 seconds, it offers exceptional precision for various applications.

This module operates with a direct voltage of 12V or 24V, thus offering great flexibility of use. Its negative trigger guarantees reliable activation of the cycle after the release of the applied contact.

The integrated SPDT relay offers high contact power, capable of handling up to 0.5A at 110V AC or 2A at 24V DC with a resistive load.

To facilitate installation, double-sided tape is included, allowing you to easily attach the module wherever you want.

Features:

• Adjustable timer unit/timer module
• Adjustable delay from 2 to 15 seconds
• Negative trigger
• The cycle begins after releasing the contact applied to the trigger
• Relay: SPDT
• Operating voltage: 12 V DC / 24 V DC
• Contact power with resistive load: 0.5 A at 110 V AC / 2 A at 24 V DC
• Double-sided adhesive tape for easy installation
• Dimensions (length x width x height): 67 mm x 22 mm x 16 mm
