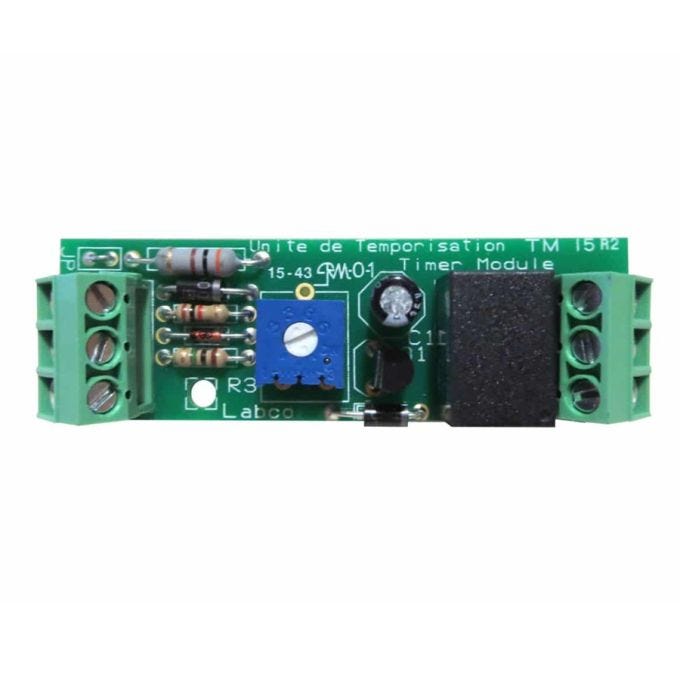

Discover the adjustable timing unit/timer module, perfect for customized delays from 2 to 60 seconds. It operates between 12 V DC and 24 V DC with a negative trigger, and begins the cycle after the contact is released. Includes an SPDT relay, supports up to 0.5 A at 110 V AC / 2 A at 24 V DC, and easily attaches with double-sided adhesive tape.

Features:

• Delay unit/adjustable timer module
• Delay adjustable from 2 to 60 seconds
• Operating voltage: 12 V DC to 24 V DC
• Negative trigger
• The cycle begins after the release of the contact applied to the trigger
• SPDT Relay
• Contact rating with resistive load: 0.5 A at 110 V AC / 2 A at 24 V DC
• Double-sided self-adhesive tape for easy installation
• Dimensions (Length X Width X Height): 67 mm X 22 mm X 16 mm
