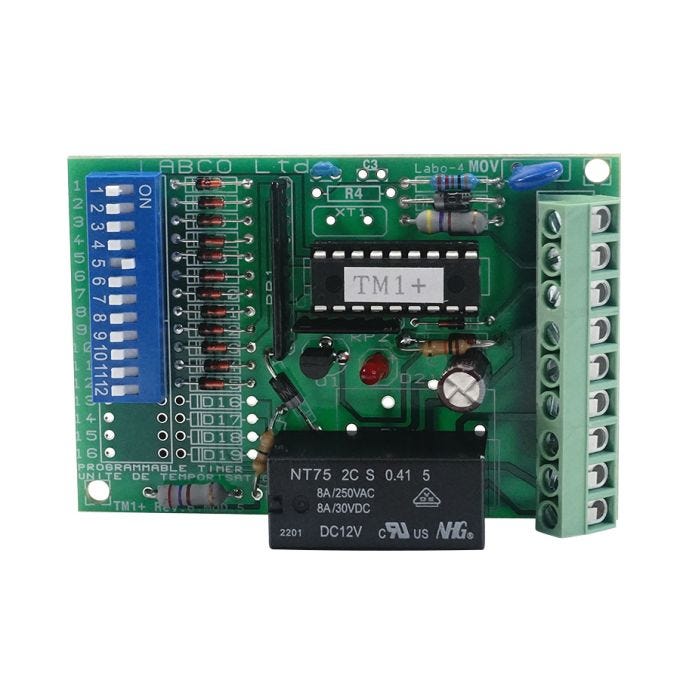

The Labco TM1 Plus Timer Module is a versatile and reliable device designed to meet your timing needs.
It has 6 operating modes, including delay on operation, lock 1, oscillator 1, delay on release, lock 2 and oscillator 2. You can choose the mode that best suits your situation specific. The timer also features an adjustable delay, providing a delay range from 1 second to 4 hours. With fully microprocessor-driven control and an integrated analog clock, this timer offers a high accuracy of 2% for optimal reliability.
The module operates with an operating voltage of 12V DC or 24V DC, thus adapting to various power sources. It is equipped with a SPDT relay with contacts compatible with voltage from 5 to 24V DC, giving you flexibility in choosing which devices to control.
Programming this timer module is easily done using "DIP" type switches, making it simple to adjust the settings to your specific needs. Finally, the installation of this module is quick and practical thanks to an included double-sided adhesive tape
Features:
- Delay unit/adjustable timer module
- 6 operation modes: Delay on operation / Latching 1 / Pulsing 1 / Delay on release / Latching 2 / Pulsing 2
- Adjustable delay from 1 second to 4 hours with LED type status indicator
- Fully microprocessor controlled and absed by an analogic clock to provide the best accuracy (2% accuracy)
- Operating voltage: 12 V DC / 24 V DC
- SPDT Relay
- Relay output: 5 to 24 V DC contacts
- Programming by « DIP » type switch
- Double-sided self-adhesive tape for easy installation
- Dimensions (Length x Width x Height): 76 mm X 51 mm X 22 mm
