LINEAR 1-Channel Digital Receiver for DX Format Transmitter

Name: LINEAR 1-Channel Digital Receiver for DX Format Transmitter
Brand: LINEAR
SKU: 900184
Price: 89.99 CAD
Availability: InStock

SKU: 900184

Model: DXR-701

LINEAR

LINEAR 1-Channel Digital Receiver for DX Format Transmitter

$89.99 89.99

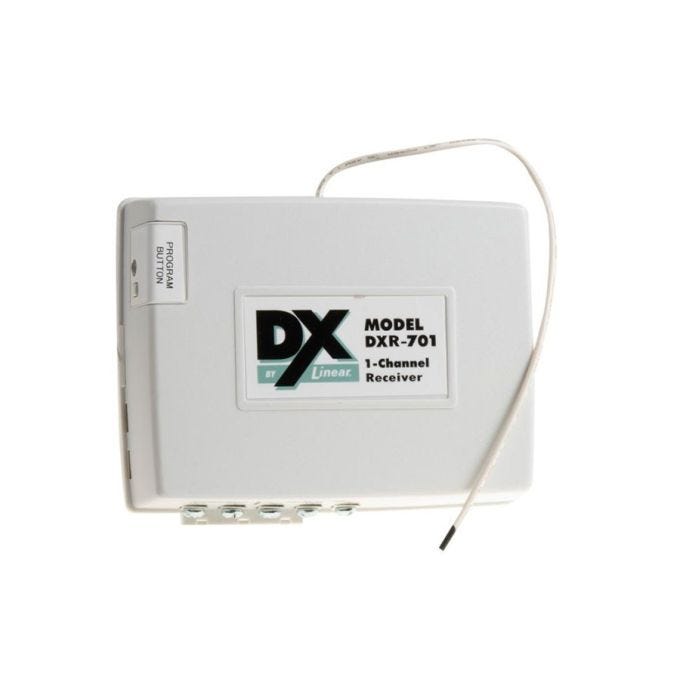

The Linear LN-DXR701 receiver is compatible with Linear DX format transmitters. It offers great flexibility thanks to its isolated relay outputs and can be configured in different ways to suit specific needs. It is commonly used to connect alarm control panels, door strikes, cameras, high current relays, etc. Transmitters allow you to control these devices. The receiver comes pre-coded at the factory with a variety of unique codes, eliminating the need for additional coding. It can manage up to 32 transmitters maximum for convenient control. Easy to install with an included mounting bracket, it is suitable for indoor or outdoor use thanks to its weather-resistant housing.

Features :

Designed for use with Linear DX format transmitters
Featuring one or two isolated relay outputs for great flexibility in remote control applications
Activation of the corresponding relay output when detecting a signal from a programmed transmitter
Four output relay configurations available to suit specific installation needs
Connected to various devices such as alarm control panels, door strikes, cameras, high current relays, etc.
Transmitters enable or control these devices
Factory pre-coded with a wide variety of unique codes, eliminating the need for additional on-site coding
Essential programming of the receiver with the corresponding transmitter code for proper operation
Ability to support up to 32 transmitters maximum for convenient order management
Ease of installation thanks to the supplied mounting bracket
Can be used indoors or outdoors thanks to the weather-resistant housing.

Specifications :

Capacity of 32 transmitters
RF activity indicator
Fast-learning programming
Operates on 11-17 VDC or 12-16 VAC power
Number of channels: One channel
Format DX
A form “C” relay output
Contact capacity of 1 A at 24 volts AC/DC
Selectable relay activation time
Current consumption: 25 mA standby, 60 mA operating at 12 V DC
RF frequency: 315 MHz

$89.99 89.99

Quantity

Select your store

Store availability:

Select your store

Store availability:

Exchange and refund

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

Maker:
LINEAR

Model:
DXR-701

UPC Code:
093863102745

Inner:
1

Master:
1

Product height:
5 cm

Product width:
15 cm

Product length:
25 cm

Product weight:
0.31 kg
