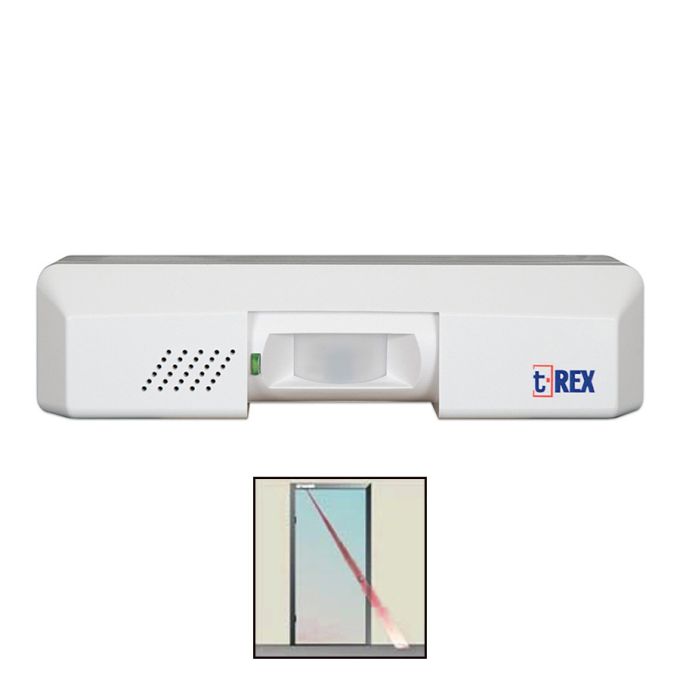

This infrared detector is perfect for controlling access to your establishment. It will allow you to monitor the doors of your building for better security. This is motion activated and provides instant triggering instead of using an exit button.

Features:

• Detection area is easily adjustable and provides very high accuracy
• X-Y Targeting targets a particular detection area
• Unlocks the door or bypasses the door contact automatically
• Hands-free, no buttons to press
• Built-in 90dB local buzzer individually controlled by controller
• Infrared detection paired with digital signal processing will prevent false "door forced open" alarms
• Red / Green LED Indicator

Specifications:

• Detector type: Passive infrared
• Filter Technology: DSP (Digital Signal Processing)
• Detector lens: Curtain type Fresnel lens
• One-handed detection range: 3 m (10 feet)
• Full body: 6 m (20 ft)
• Power consumption 12-28 V DC, 50 mA
• Piezoelectric buzzer: 90 dB at 28 VDC, 5-28 VDC, 20 mA
• Main relay contacts: SPDT, 1A max. at 30 VDC max.
• Main Relay Timer: Adjustable 1/2 to 60 seconds
• Main Relay Recycle Time: Fixed, 3/4 seconds off
• Solid state relay: N.C., 2A max. at 30 V DC, delayed at 2 seconds fixed
• Tamper contact N.C., 100 mA max. at 30 V DC max.
• Dimensions (H.L.D): 19 cm X 4.5 cm X 4.75 cm
• Certification: CUL
