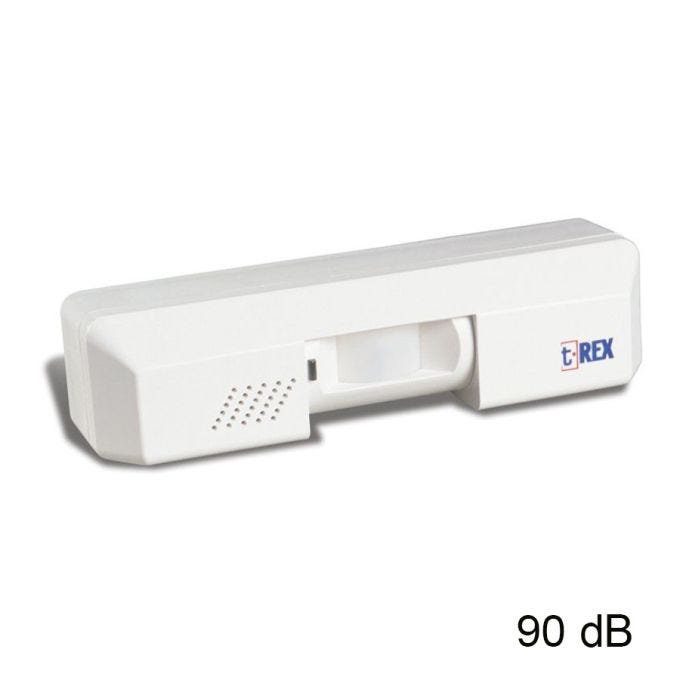

T.Rex offers a complete solution for exit detection and door monitoring in access control applications. Its horizontal and vertical targeting function reinforces security by allowing a precise detection zone to be defined. The installer can adjust the T.Rex's detection zone so that it does not "touch" the ground along the door jambs, helping to counter attempts to bypass door monitoring by sliding objects under the door. Additionally, through the combined use of infrared sensing and DSP sampling ensures accurate detection of outputs for maximum safety.

Features :

• Adjustable detection zone to obtain the greatest possible precision
• X-Y Targeting technology: Horizontal and vertical targeting function allows for enhanced targeting of a specific area
• Allows you to unlock the door or bypass the door contact automatically without any buttons to press
• 90 dB warning tone individually controlled by controller
• Incorporates an infrared detector with signal processing to prevent false forced door alarms

Specifications:

• Detector type: Passive infrared
• Filter Technology: Digital Signal Processing (DSP)
• Detection range: Narrow targeting area: 3 m, Full body: 6 m
• Audible alarm: 90 dB
• Main Relay Contacts: Single Pole 2 Sense Type
• indicator light: Red/Green
• Mounting: Mounting flange (not included) for mounting the T.REX on a box for simple standard cabinet connection
• Dimensions: 4.5 cm x 19 cm x 7.75 cm
• Current voltage : 12 to 28 V DC
• Certification: CUL
