AIPHONE

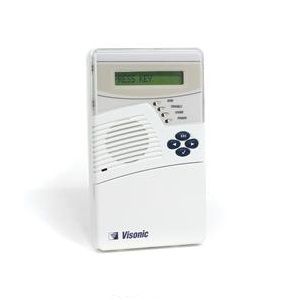

2-Way Wireless Keypad

Dimensions: 6 7/8" x 3 15/16" x 1 9/16" (172mm x 99mm x 39mm)
Weight: 13 oz. (375g)
Maximum: 2 keypads per SecureLinc system
Display: Single line backlit 16-character LCD and 4 LED indicators
Control Functions: Home arming, away arming, bypass, disarming, latchkey, light ON/OFF, light dim/bright, recording, Aux, forced arming, panic, fire and emergency calls
Sleep Mode: Enters sleep mode 15 seconds after last use in battery operation
Supervision: Periodic supervision message is transmitted every 60 minutes
Tamper Switch: Normally closed; activates upon case opening, keypad removal, system removal
Operating Frequency: 315 MHz
RF Receiver: Super-heterodyne, fixed frequency
Receiver Range: 600' (180m) in open space
Antenna Type: Spatial
Coding: 2-way wireless protocol
Operating Temperature: 32° F to 120° F (0° C to 49° C)
Storage Temperature: -4° F to 140° F (-20° C to 60° C)
Humidity: 85% relative humidity at 86° F (30° C)
Power: 120V AC, 60 Hz/9V AC, 0.35 A or 2 3-volt CR123A lithium batteries
Battery Life: 2 years typical
AC Current Drain: 30 mA standby, 300 mA max. (approx.)
Approvals: FCC compliant, CE listed
